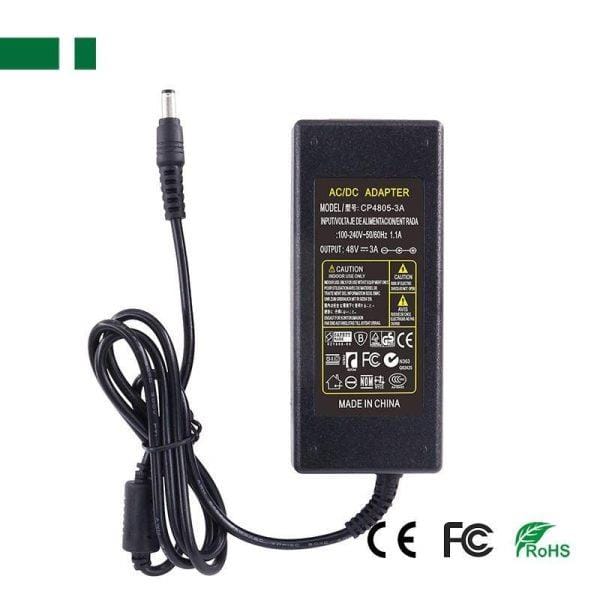

Τροφοδοτικό Switching 48V/3A/144W ANGA CP4805-3A
€20,00
Τροφοδοτικό Switching 48V/2A PS-48-2A
1 σε απόθεμα
Περιγραφή
Τεχνικά χαρακτηριστικά:
| Model | CP4805-3A | |
| Output | DC output Voltage | 48V±10% |
| Output Current Range | 0-3A | |
| Wave and Noise | 120mVp-p | |
| DC output Power | 144W | |
| Efficiency | 85% | |
| DC Voltage Adjustable Scope | (at full load)?0.5% | |
| Input | Voltage Range | 85~264VAC 47-63Hz |
| Input Current | 0.14A/115V, 0.07A/230V | |
| Leakage Current | <1mA/ 240VAC | |
| Inrush Current | Cold start 20A/120VAC, 40A/230VAC | |
| Protection | Over-load | 105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed |
| Over-voltage | 105%—150% Rated Voltage, Protection type: Shut off | |
| High-temperature | RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V) | |
| Environment | Working temperature and humidity | -10°C~+50°C, 20~90%RH |
| Store temperature and humidity | -20°C~+85°C, 10~95%RH | |
| Temperature coefficient | ±0.03%°C(0~50°C) | |
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES | |
| Safety | Withstand voltage | I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC |
| Isolation resistance | I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC | |
| Standard | CE EMC Standard | EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013 |
| CE LVD Standard | EN61347-2-13:2014+A1:2017, EB61347-1:2015 | |
| ROHS Standard | IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc. | |
| Other | Dimension | 70*39*31mm (L*W*H) |
| Weight | 0.058kg | |
Επιπλέον πληροφορίες
| Βάρος | 0,328 κ. |
|---|---|
| Διαστάσεις | 0,208 × 0,114 × 0,042 cm |
| mpn |
